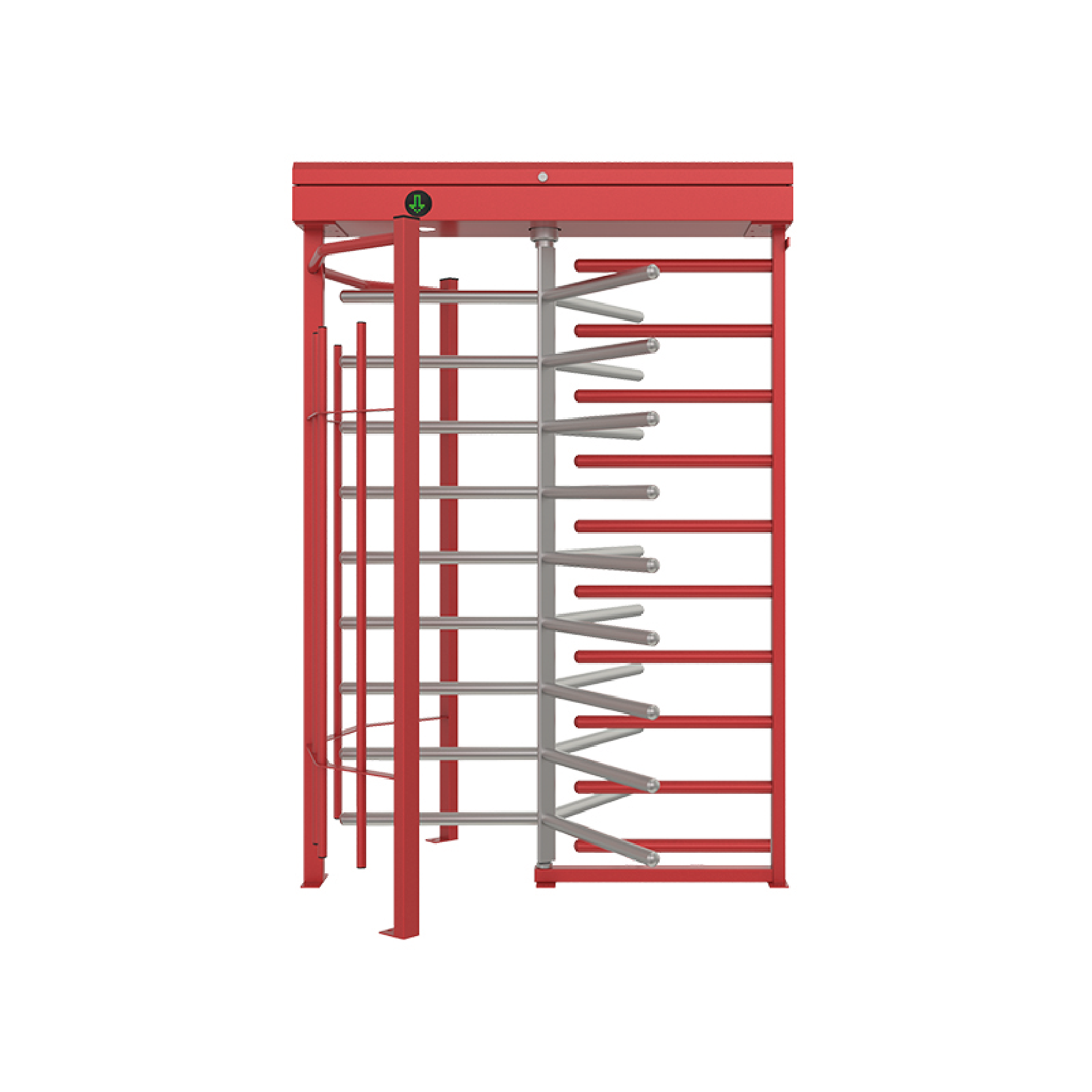

Elektromehaaniline ühesuunaline pöördvärav BTC 300 S CAME ÖZAK
Sisaldab KM 24%
Tarne 3-7 Päeva
Elektromehaaniline ühesuunaline pöördvärav BTC 300 S CAME ÖZAK
- Korpus on tsingitud ja pulbervärvitud, rootor roostevabast terasest
- Sobib välitingimustesse
Tehniline kirjeldus:
| Place of use | Indoors, Outdoors | ||||||||||||
| Operating temperature, humidity | -20°C/+68°C (opt. -50°C with heater positive), RH %95 non-condensing. | ||||||||||||
| Operating Intensity | %100, 7/24 use | ||||||||||||
| Body / Arm Features |
Built on main carriers and supported with pipe beams on sides, consisting of waterproof and protecting top lid, mechanical compartment side panels and completely closed ceiling. Can be completely disassembled. Three-section rotor (120°), each having 9 (10 in optional 2120 mm clear passage height) one-by-one demountable arms. Optionally complies with UK H&S regulation of s98 mm gap between upright profiles. Combination options with different material choices:
Finishing: Orbital brushed matt (opt, electrostatic powder coating on stainless steel). |
||||||||||||
| Indicators / Illumination | Status – Direction Indicators: LED, standard/LED passageway illumination standard. | ||||||||||||
| Power |
Operating Voltage: 110/220V AC 50/60 Hz. (=%10), 24V DC. Consumption: about 8W at stand-by, max – 44W (varies according to the options and accessories used). |
||||||||||||
| Operating Modes |
The system operates bi-directionally (entry-exit). Operation modes can be changed through dip switch, PC and/or Android app. Entry-exit controlled Entry-controlled, exit free Entry-free, exit controlled Single input in both directions use Entry-exit free |
||||||||||||
| Operating System | Electromechanical manual operation (opt. electromechanical motorized operation). | ||||||||||||
| Control System |
All functions, parameters and operating modes can be changed through the control board (microprocessor controlled), PC (Windows) and/or Android app. Firmware can be updated. All past function updates and changes are kept in the server and records can be traced. All inputs are opto-coupler protected. Controllable by dry contact (ground control). Compatible with all kinds of access control devices. Optional R$232, RS485 or TCP/IP module is available |
||||||||||||
| Flow Rate |
Passage capacity (manual): max. 48 cycle/min. Nominal: ~25 pass/min. Passage capacity (motorized): max. 40 cycle/min. Nominal: ~20 pass/min (nominal passage rate can change depending on the access control system utilized) |
||||||||||||
| Emergency mode | The system allows free passage (entry-exit) in both directions (fail-safe). Works compatible with fire warnings and similar systems. At the end of an emergency situation, the system returns to its normal operating mode. | ||||||||||||
| Power-off Situation | The system allows free passage (entry-exit) in both directions (fall safe). Optionally, can be set (fail secure) as; entry-exit locked, entry-free-exit locked, or entry locked-exit free. Free passage in chosen direction by manual override key in the fail secure option is available. | ||||||||||||
| Weight | ~175kg | ||||||||||||
| Optional Features and accessories | Motor-driven unit, wireless remote control (receiver-transmitter), manual control, manual override key (with fail secure option), counter (with/without reset), card reader mounting bracket, passage completion sensor, contactless passage sensor (for motorized models), heater positive, canopy, the bottom plate (standard or for forklift handling), battery back-up, 316-grade stainless steel, R$232-RS485-Т/P modules, limiter, 2120 mm clear passage height, mechanics compartment accessibility from the ceiling, trombone arms, different color choices, compliance with UK H&S regulation of 598 mm gap between upright profiles. |
| Mõõtmed | 120 × 120 × 220 cm |
|---|
